Electromagnet Crane Activity

This activity is not for sale - it has been replaced with the Electromagnet Crane 2.0. You can still complete this activity if you purchase Bulk Components or a Maker Cart.

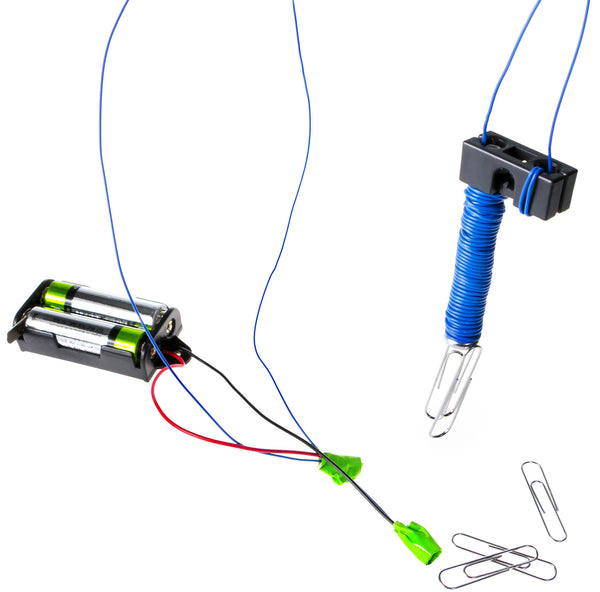

Your Mission: Design and build a crane that can best sort magnetic materials for recycling. Start by making and experimenting with an electromagnet, then create a crane to move it. Test the crane using the scientific method. Evolve the crane through the engineering design process. How many magnetic items can you sort in two minutes? Compete against other cranes, or challenge yourself in the Super Sort Engineering and Design Challenge.

Use found (recycling bin) materials to enhance your crane design or as sorting material for the Engineering & Design Challenge. Each activity provides plenty of extra parts to try different designs and continue to tinker. This activity is a real “pick me up.”

This discontinued product has been updated to the Electromagnet Crane 2.0 which allows for even more builds and innovation! Check your label to make sure you're on the correct page.

Click here to go to the original Electromagnet Crane page! (You're in the wrong place.)

You're in the right place! Scroll down to find documents and videos.

Electromagnet Crane Educational Goals

  • Utilize the design and engineering process
  • Encourage creativity, critical thinking and problem solving
  • Learn about electromagnetism, magnetic fields, and simple machines
  • Apply the scientific method

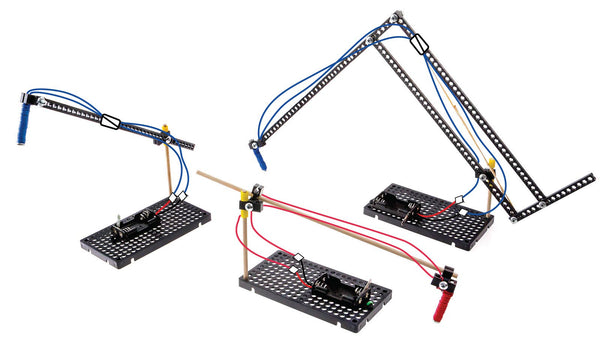

  • Innovate (design, build and evolve your own unique Crane design)

Completing the

Electromagnet Crane Activity

(Ages 7-11)

For ages 12 and up, click here



  • Choice #1 Without Labs: Go straight from the Build Guide to the Engineering Challenges. This option works well when you’re doing the activity outside of a classroom, in a Makerspace, as a self-directed activity, or just for fun.
  • Choice #2 With Labs: Start with the Optional Labs to build the magnet and explore how and why it works. Then, go on to the Crane Build to build the body of the Crane. Next, move on to the Engineering Challenges to see if your innovative abilities and your Crane are up to the challenge . This option works well when you want to teach this activity to a class or during a class visit to a Makerspace.

MS Word or PDF- Which document format should you download? Always download the PDF document, unless you want to edit/change it. If you want to edit/change the document, download the MS Word (Microsoft Word) version.

     Build Guide

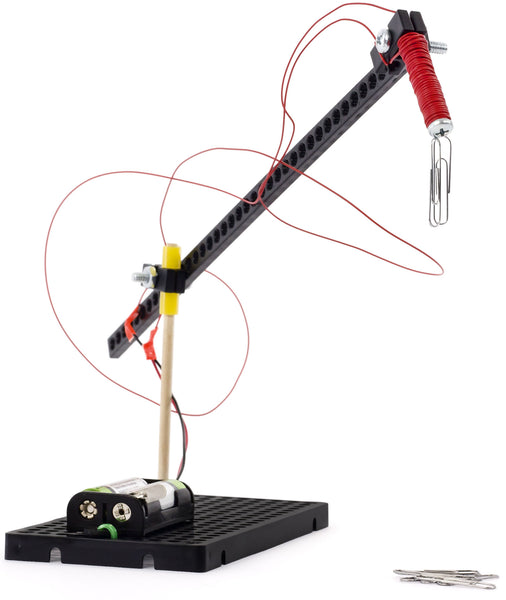

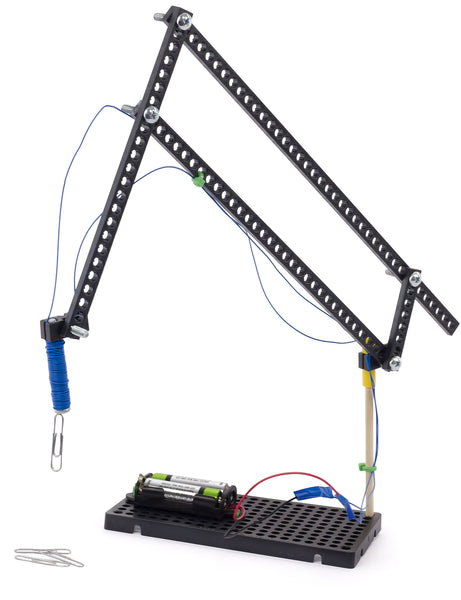

Start by creating an example Electromagnet Crane using the Build Guide.

  • Electromagnet Crane All-In-One Build Guide: PDF or MS Word

     Build Guide with Lab

Build your magnet for the crane and explore how and why magnets work! (Suggested Grade Levels: 2-4)

     Crane Build

The magnet is built and now you are ready to build your Crane.

     Engineering Challenges

It’s time to redesign your Electromagnet Crane to compete in one or more Engineering Challenges. Use these Challenges to solve design problems and improve your prototype.



Electromagnet 'In the Bucket' Challenge Thumbnail

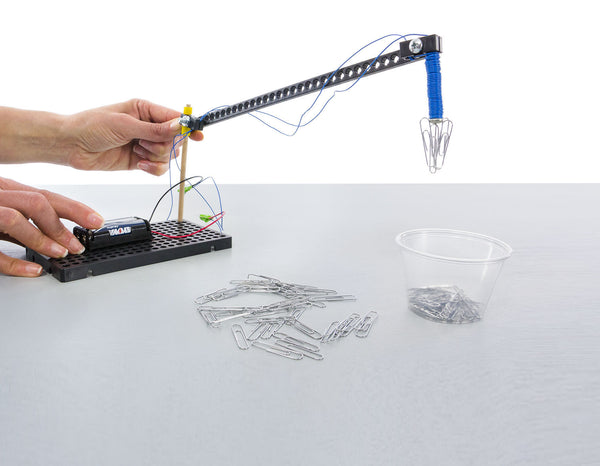

  • ”In the Bucket” Challenge: : PDF or MS Word --Collect as many paper clips as possible.









Electromagnet 'Clip Hanger' Challenge Thumbnail

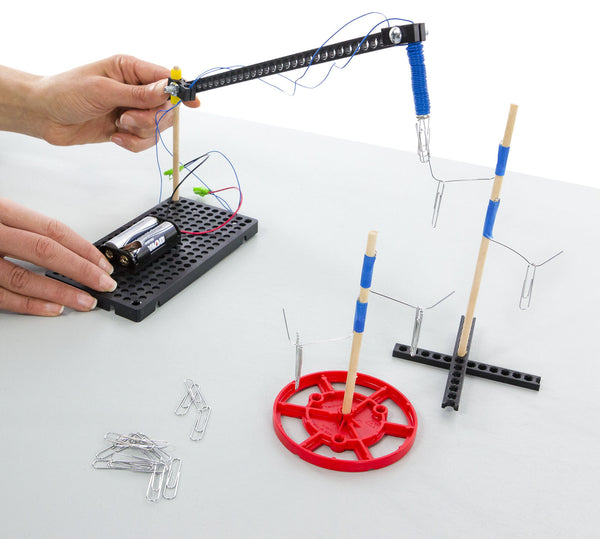

  • ”Clip Hanger” Challenge: PDF- or -MS Word--Hang as many paper clips as you can.









Electromagnet Engineering Challenge Thumbnail

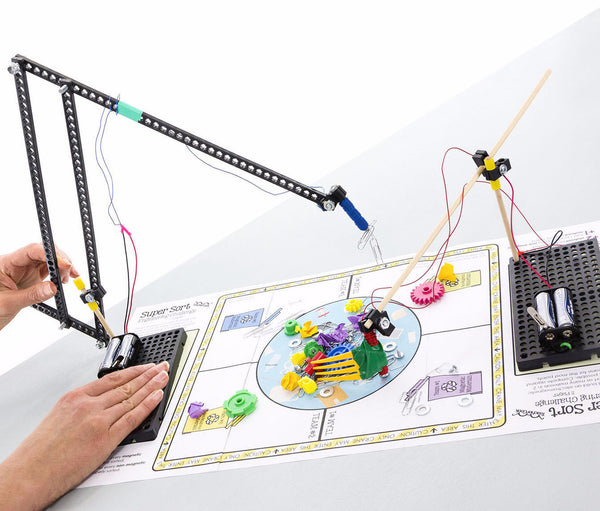

  • ”Super Sort” Challenge: PDF -- or -- MS Word -Sort as much magnetic and non-magnetic materials as you can in the “Super Sort” Arena.
